掃除口・蓋
|
|
１．VCO ツマミ式 ２．VCO-C キャップ式 ３．VCO-CS スリーブ式 |
| |
| |

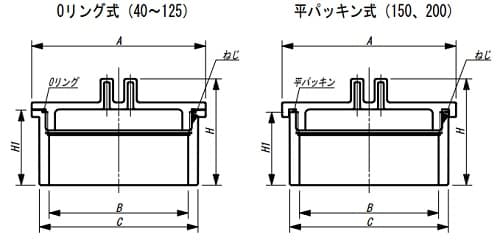

| １．VCO ツマミ式 |
 |
|
● VCO 価格表 ●
| バラ価格 |
|
| 形式 |
税込価格 |
| 掃除口VCO-40 |
¥153 |
 |
| 掃除口VCO-50 |
¥203 |
| 掃除口VCO-65 |
¥364 |
| 掃除口VCO-75 |
¥419 |
| 掃除口VCO-100 |
¥640 |
| 掃除口VCO-125 |
¥1,586 |
| 掃除口VCO-150 |
¥2,450 |
| 掃除口VCO-200 |
¥5,013 |
|
◆ VCO 寸法表 ◆
| 呼径 |
寸法 mm |
| A |
B |
C |
H |
H1 |
| 40 |
58 |
40.4 |
48 |
39.0 |
24 |
| 50 |
69 |
52.2 |
60 |
44.0 |
27 |
| 65 |
88 |
66.6 |
76 |
56.5 |
38 |
| 75 |
100 |
78.5 |
89 |
65.5 |
44 |
| 100 |
125 |
100.0 |
114 |
75.0 |
54 |
| 125 |
150 |
125.0 |
140 |
99.5 |
70 |
| 150 |
178 |
146.0 |
165 |
115.0 |
80 |
| 200 |
235 |
197.0 |
216 |
153.0 |
111 |
|
|
| |
| |
| 塩ビ継手トップへ |

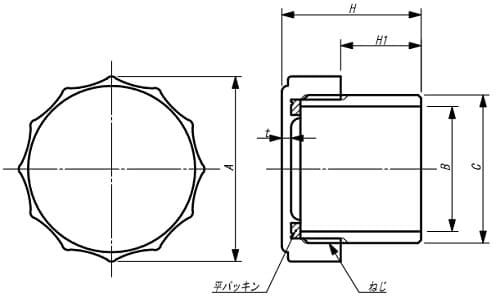

| ２．VCO-C キャップ式 |
 |
|
● VCO-C 価格表 ●
| バラ価格 |
|
| 形式 |
税込価格 |
| 掃除口VCO-C-40 |
¥153 |
|
| 掃除口VCO-C-50 |
¥203 |
| 掃除口VCO-C-65 |
¥364 |
| 掃除口VCO-C-75 |
¥480 |
| 掃除口VCO-C-100 |
¥762 |
| 掃除口VCO-C-125 |
¥1,676 |
|
◆ VCO-C 寸法表 ◆
| 呼径 |
寸法 mm |
| A |
B |
C |
H |
H1 |
t |
| 40 |
60 |
40.5 |
48 |
45 |
26 |
3.0 |
| 50 |
72 |
51.5 |
60 |
48 |
29 |
| 65 |
90 |
67.0 |
76 |
60 |
40 |
3.5 |
| 75 |
104 |
78.0 |
89 |
62 |
41 |
| 100 |
132 |
101.0 |
114 |
78 |
54 |
4.5 |
| 125 |
159 |
126.0 |
140 |
97 |
69 |
5.0 |
|
|
| |
| |
| 塩ビ継手トップへ |

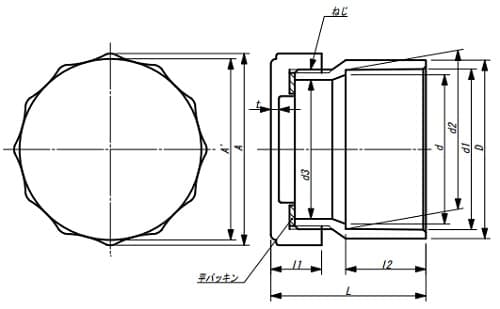

| ３．VCO-CS スリーブ式 |
 |
|
● VCO-CS 価格表 ●
| バラ価格 |
|
| 形式 |
税込価格 |
| 掃除口VCO-CS50 |
¥216 |
|
| 掃除口VCO-CS65 |
¥364 |
| 掃除口VCO-CS75 |
¥722 |
| 掃除口VCO-CS100 |
¥1,071 |
|
◆ VCO-CS 寸法表 ◆
| 呼径 |
寸法 mm |
| A |
A' |
D |
d1 |
d2 |
d |
d3 |
l2 |
l1 |
L |
t |
| 50 |
72 |
68 |
67.0 |
60.35±0.30 |
59. 75±0.30 |
56 |
52.2 |
30 |
19 |
58 |
3.0 |
| 65 |
90 |
84 |
83.5 |
76.40±0.30 |
75. 30±0.30 |
71 |
67.0 |
40 |
20 |
70 |
3.5 |
| 75 |
104 |
97 |
97.0 |
89.45±0.30 |
88. 65±0.30 |
83 |
77.2 |
45 |
21 |
76 |
| 100 |
132 |
124 |
124.0 |
114.55±0. 35 |
113. 55±0. 35 |
107 |
98.8 |
55 |
24 |
90 |
4.5 |
|
|
| |
| |
| 塩ビ継手トップへ |
|
|
|
|
